SpacePole Payment [SpacePole Payment]

Description Features Downloads

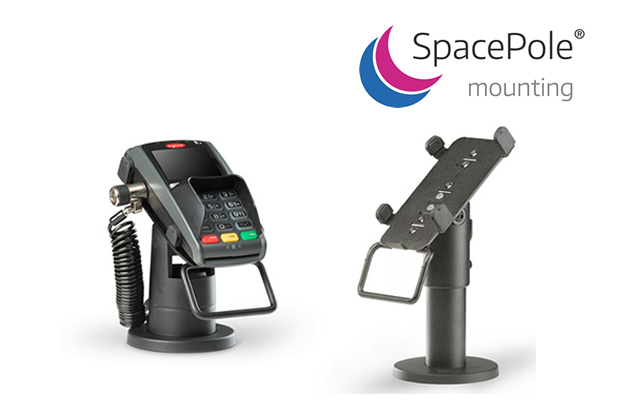

SpacePole Payment is the core of Ergonomic Solutions mounting options, offering secure, protected and PCI compliant solutions for chip and pin machines and payment terminals for all manufacturers. Payment machines are secured in a MultiGrip plate, specifically designed for each PIN entry device and attached to either a flexible and rotating DuraTilt pole, a lightweight SpacePole Light or low profile profile. Cable management is a focus of all SpacePole Payment mounting solutions with effective space saving for all installations. ClickSafe is also compatible with SpacePole payment offering a tethered cable solution for security and PCI compliance

SpacePole Payment range includes:

DuraTilt is a secure metal tilting pole top attachment to support MultiGrip plates
SpacePole Stack payment solution to provide maximum flexibility at the Point of Payment
SpacePole Light composite tilting pole to support MultiGrip plates
SpacePole Low Profile pole to support MultiGrip plates
MultiGrip plate uniquely designed for payment terminals from Ingenico, Verifone and all major manufacturers
Classic poles in different height and diameter options

Visit us on http://www.ergonomic-solutions.net/products/spacepole-payment/payment/ to know more.


DuraTilt® - •Patented tilt technology: Contains 13 individual parts and tested through 250,000 cycles and proven in retail installations without the need for tightening or lubrication. Comes with a five year warranty. •Ergonomically adjustable: Range of tilt which meets all recommended ergonomic requirements for disability access and reduces the need to remove the payment terminal from the stand. \| SpacePole Stack- •Wider body for improved cable management •Large top support for improved stability of payment terminals •Choose between two diff erent heights, out of the box: Height standard range: 96mm/3.77’’ Height extended range: 124mm/4.88’’ •Competitive price point •Tilt: 70° / Rotation: 310° •Footprint: 101,4mm/3.99’’ •Compatible with MultiGrip™ M4 screws (suitable for re-mounting) •Counter mounting options: Self-tapping screws Self-adhesive pad •Added security options through ClickSafe® \| SpacePole Light® - •Composite material with all the features that you would expect •Ideal for contactless or traditional payment transactions •Quality at a reduced price point •VHB adhesive disc supplied free for easy installations where required Low Profile- •Unique ergonomic design •Fixed tilt •Fully compatible with Multi Grip™ plates and SpacePole ClickSafe® •Ensures smooth operation of terminal •Internal cable management with plastic grommets and limited head rotation to protect cables \| MultiGrip™- •Compatible across all three payment terminal mounting solutions. •Available for all manufacturer payment terminals. •All plates offer a unique system of multiple mounting positions for any environment at the point of sale. •Key hole mounting design securely holds the terminal in place. •Patented friction pad design ensures that the payment terminal is gripped securely, whilst it remains easy to remove for disability access. •Two options available depending on payment mounting solution: MultiGrip plate with handle (-MH) MultiGrip plate with no handle (-MN) \| Rotation- •Rotates from the customer side to the cashier side. •Intelligently designed ‘anti-wobble’ plastic sleeve provides smooth operation and simplifies installation in regard to rotation slot alignment. \| Cable management- •Full cable management. •Plastic grommet to ensure cable is not damaged by the metal. •Limited head rotation to ensure cables are not stressed. \| Additional design features- •Plastic flange cover to hide fixings. •Simple and quick to install. •Complete boxed solutions, including fixings and mounting instructions \| Simple & cost effective upgrades- •A fully upgradeable and modular system, providing retention and protection of any hardware investment. •Multiple, cost effective upgrade options


Currently we have no PDF file uploaded for this model.
