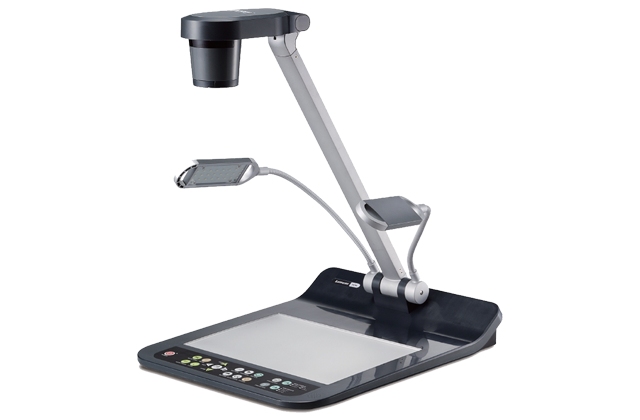

PS750
Multimedia Desktop Document Camera

The Lumens™ PS750 is a Multimedia document camera with HDMI output, stand-alone audio, video recording and playback. The VGA and HDMI ports provide High Resolution clarity. Specifically designed with the needs of educators in mind, the PS750 works seamlessly with interactive whiteboards and connects via High-Speed USB 2.0.

Specifications:

IMAGING

Sensor Technology : CMOS
Output Resolution : XGA (1024 x 768), SXGA (1280 x 1024),
WXGA (1280 x 800)
Frame Rate : 30 fps (Maximum)
Zoom Capacity : 16x optical zoom and 6x digital zoom
Capture Area : 400 x 300 mm (16” x 12”)

LIGHTING

Lamp Type : LED Lamp Gooseneck
Number of Lamps : 2 lights
Light Box : built-in, 210 x 297 mm (8” x 11”)


INPUT/OUTPUT

Power Supply : Built-in, 100-240 VAC, auto switching
HDMI Output : HDTV Out x 1
VGA in : 2 ports, active pass through from the computer to an external monitor, can switch VGA source between 2 computers
VGA Out : 2 ports, to projector and to monitor (for VGA pass through)
Audio In : Built-in microphone and 3 audio input ports
Audio Out : 3.5mm phone jack for earphones or speakers
Internal Memory Capacity : Up to 240 JPEG images
External Memory Capacity : Support SDHC up to 32GB memory
USB Support : USB 2.0 High Speed ( up to 480 Mbps ) for seamless
integration with interactive whiteboards
Video In : S-Video x 1, C-Video x 1
Video Out : C-Video x 1


SOFTWARE

Lumens™ Software Included : Support PC Windows 7, XP, Vista and Mac OSX. (Free download from Lumens™ website.)
Video Recording with Audio : Record video with various compression codecs.
Image Capture : Single or continuous capture of JPEG images.
Annotation : Add annotations directly to live image.
Controls and Operations : Base keypad and remote have matching
control functionality.
USB Driver : Support WIA and TWAIN for integration with Interactive Whiteboards such as Hitachi Starboard™, Mimio™, Promethean™, etc.


SECURITY


Lock-Down Mode : Lock the unit with password entry
Auto Erase Mode : Option to automatically erase internal memory during power down
Anti-Theft : Kensington Lock Port on document camera chassis.
Bolt Holes on Bottom for Mounting :
VESA standard 75 x 75 mm (2.95” x 2.95”)
