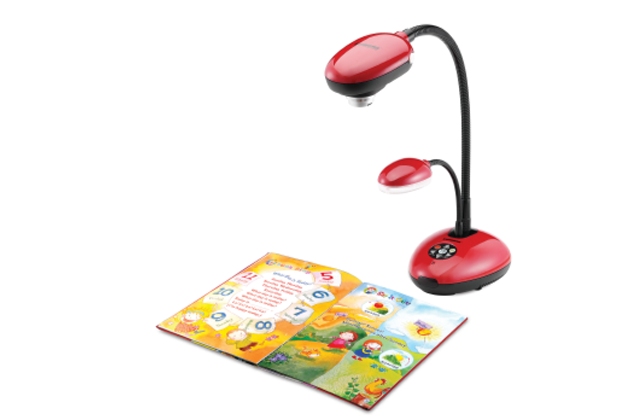

The Lumens DC190 Ladibug is a high-resolution multimedia document camera that delivers crystal clear SXGA resolution with a powerful 5.5x optical zoom lens. One-touch audio/video recording and playback do not require a computer. A large image shooting area means teachers can share a view of large pages and objects instantly. The DC190 camera head and lamp are mounted on adjustable gooseneck arms to examine objects from any angle.
Specification:
IMAGING
Full screen Video/audio recording and playback
Output Resolution: XGA (1024 x 768), SXGA (1280 x 1024), WXGA (1280 x 800)
Frame Rate: VGA - 30 fps; USB - 20 fps
Zoom Capacity: 5.5x optical zoom and 8x digital zoom
Capture Area: 18" x 12.5" (357.2 x 317.5 mm)
LIGHTING
Lamp Type: 2 lamps for completely even light coverage, (one in head)
Light Box: Optional
INPUT/OUTPUT
Power Supply: Built-in, 100-240 VAC, auto switching
VGA In: Active Pass through from the computer
VGA Out: VGA output to the projector
Audio In: Built-in microphone
Audio Out: 3.5 mm phone jacks for earphones or speakers
Internal Memory Capacity: Up to 120 JPEG images
External Memory Capacity: Support USB Drive
USB Support: USB 2.0 High Speed (up to 480 Mbps) for seamless integration with interactive whiteboards
RS-232: Yes
C-Video: RCS Jack (PAL, NTSC)
SOFTWARE
Ladibug Software Included: Support PC Windows 7, XP, Vista and Mac OSX. (Free download from Lumens website)
Video recording with Audio: Recird Video with various compression formats. Playback with audio out-No PC needed.
Image Capture: Add annotations directly to live image.
Controls and Operations: Same set of controls as the remote control
USB Driver: Supports UVC, WIA and TWAIN for integration with interactibe whiteboards including Promethean, SMART, Hitachi Starboard, Mimio, and others.
