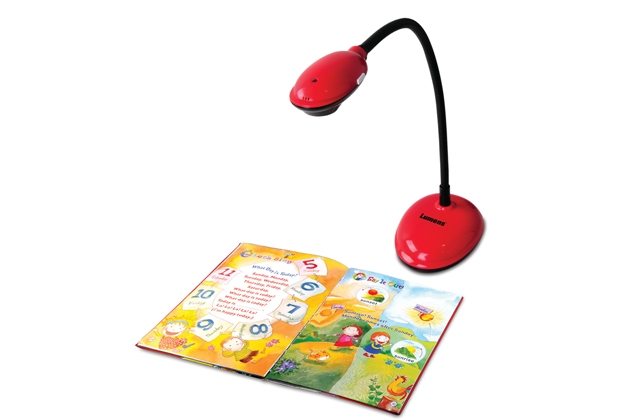

DC120
The Ultra-Portable
High-Definition Visual Presenter
Teachers can finally install their own high-definition document camera with a DC120 Visual Presenter. This lightweight unit includes a 25 foot (8m) cabling to reach the center of the classroom.
Specification:
IMAGING
Sensor Technology : CMOS
Output Resolution: XGA (1024 x 768), SXGA (1280x960),
UXGA (1600x1200)
Frame Rate: 30 fps (Maximum)
Zoom Capacity: 5.5x mechanical zoom
Capture Area: 400 x 300 mm (15.7”x11.8”)
LIGHTING
Lamp Type: Built-in LED light
OUTPUT
USB Support: USB 2.0 High Speed (up to 480 Mbps) for independent use or seamless integration with interactive whiteboards
SOFTWARE
Ladibug™ Software Included: Support PC Windows 7, XP, Vista
and Mac OSX. (Free download from Lumens™ website)
Video Recording with Audio: Record video with various compression codecs.
Image Capture: Single or continuous capture of JPEG images
Annotation: Add annotations directly to live image
DRIVER
USB Driver: Support TWAIN, UAC/UVC for integration with interactive whiteboards including Promethean™, SMART™, Hitachi Starboard™, Mimio™, and others.
SECURITY
Anti-Theft: Kensington lock port
Bolt Holes on Bottom for Mounting: VESA standard 75 x 75 mm
ACCESSORIES
Standard: 10 foot (3m) USB cable plus 15 foot (5m) USB extension cable – totals 25 feet (8m)
USB 2.0 High Speed Extension: No power cable required.
Optional Accessory: Microscope adapter - 28mm( x1), padded carrying case
OPERATION FUNCTIONS
Auto Exposure: Yes
Auto White Balance: Yes
Auto Focus: Yes
Auto Tune: Yes
Photo/Text Mode: Choose photo/text mode
Image Capture: Capture images to the computer via USB connection
Audio/Video Recording: Yes, via USB by using Lumens’ software
Built-in Microphone: Built into camera head
Image Rotation: Full screen image rotation from 0 to 180 degrees
Annotation: Yes, by using Ladibug™ software
USB Support Output Modes: VGA(640X480), SVGA(800X600), XGA (1024 x 768), SXGA (1280x960), UXGA (1600x1200), WXGA (1280x800)
